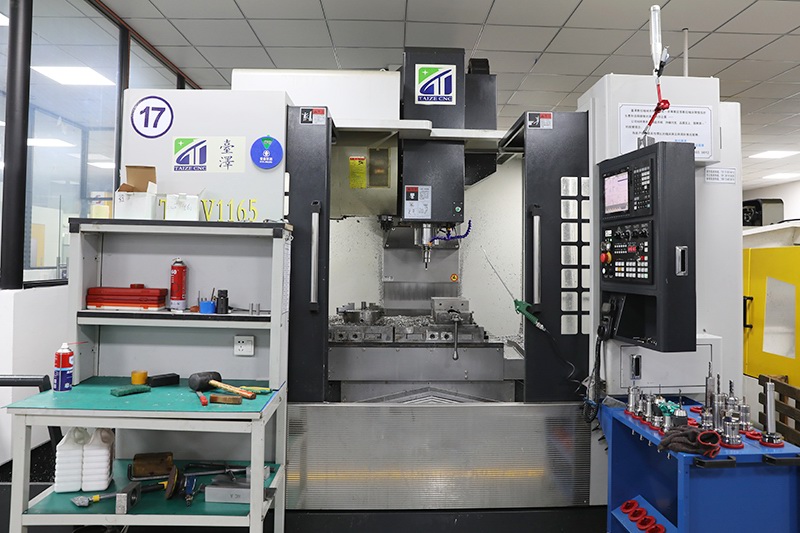

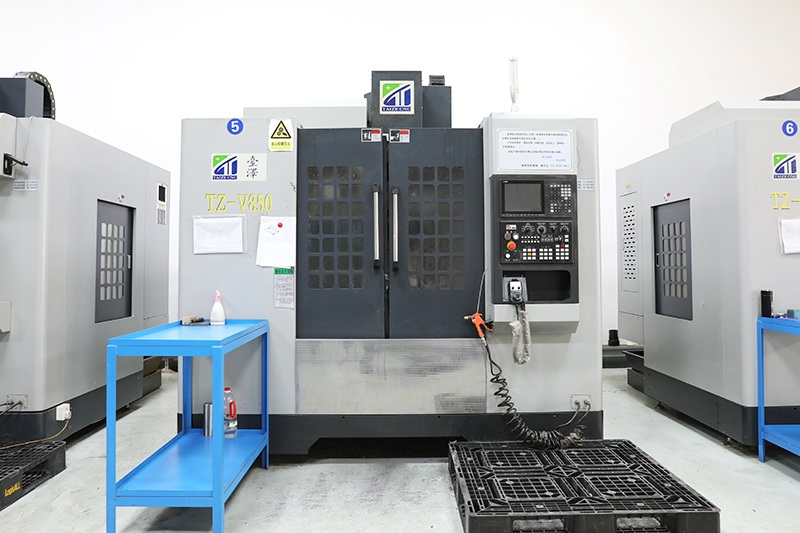

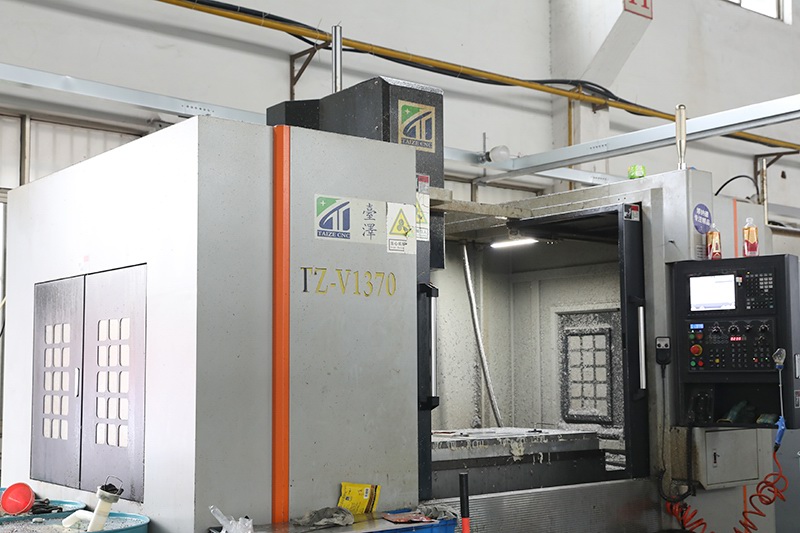

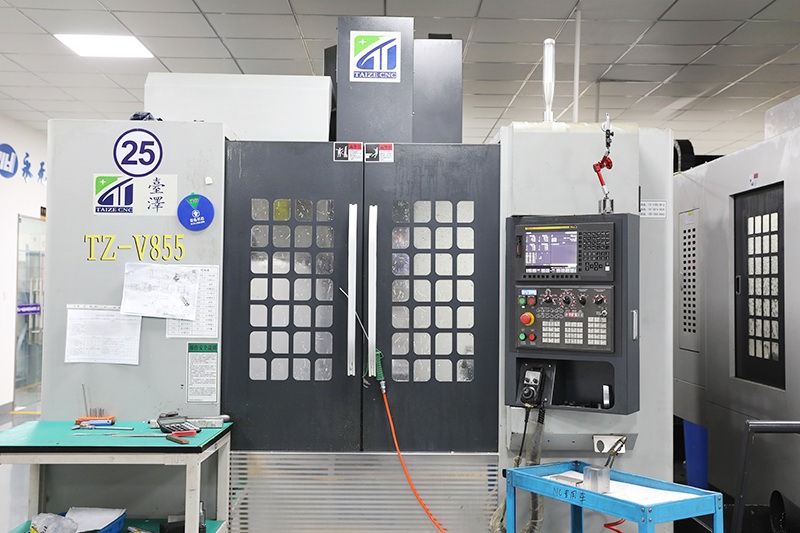

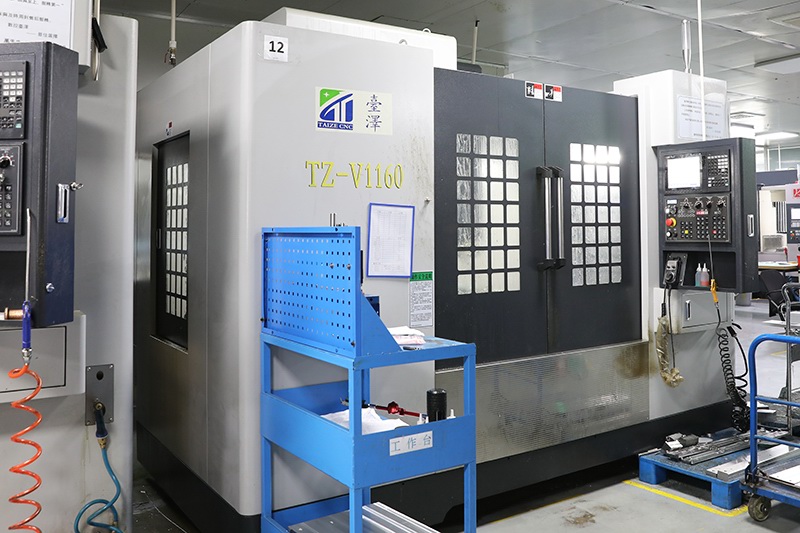

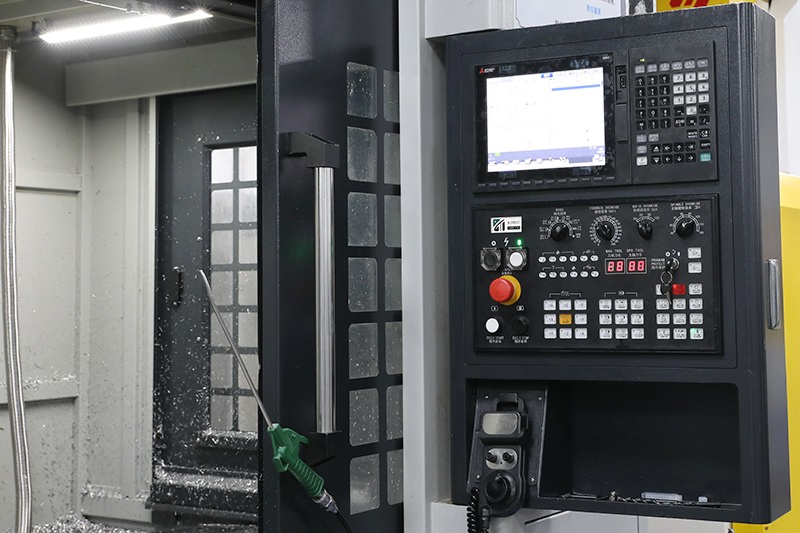

3-Axis Linear Guideway Vertical Machining Center

High speed, High precision, and Versatility

Usage:

The machine tool has good rigidity, easy and flexible operation, and high reliability. Long service life, low energy consumption, high control precision and strong anti-interference ability.

It is suitable for mold processing, milling and boring of parts, drilling, tapping and other operations.

Main application areas: automobile and parts, new energy, mold manufacturing, precision parts processing and other fields.

Machine structure and performance characteristics

1、The castings of this machine tool are made of high-quality resin sand castings, and the castings are processed by artificial aging to reduce the stress deformation of the castings.

2、Wide base box structure and "herringbone" column design, column for the double-wall structure, greatly enhance the mechanical rigidity. The contact surfaces are treated with spatula to ensure the rigidity of the movement of the machine and the precision and stability of the high-speed displacement.

3、The spindle system of this machine tool is originated from a professional manufacturer in Taiwan Province of China, and all the important parts are strictly heat-treated. Adopting P4 grade spindle bearings and special grease lubrication, the whole set of spindle is assembled under constant temperature and then need to pass the computerized dynamic balance correction and running-in test, the whole set of spindle has long service life and high reliability.

4, the machine tool X, Y, Z three-axis drive ball screws are used in Taiwan Province of China supporting manufacturers PMI or HIWIN provided by the C3 grade ball screws, ball screws are used in the main end of the main bearing imported P4 grade 60 ﾟ contact angle paired combination of ball screw bearings, the tail end of the pre-tensioning device, to ensure that the backlash of the machine and thermal deformation of the machine for a long time to remain at a low value. X, Y, Z axis adopts the linear slide, high rigidity, high wear resistance, high wear resistance and high reliability. The X, Y and Z axes adopt linear slide rails with high rigidity, high wear resistance, low noise and low friction to ensure the positioning accuracy and control of machining errors. High-quality couplings are adopted to ensure high rigidity, stable and reliable precision of the three-axis transmission.

5. The lubrication system of the machine tool adopts volumetric oil supply lubrication system to ensure that the lubricated parts are fully lubricated. It is recommended to supply oil every 15 minutes, and the lubricant is recommended to use ISOVG68 guide rail oil.
